This is part 5 of the e-commerce microservices series, and the last post of the foundations part. The code for this post is at tag |
An API without documentation leaves its users two options: read the code or ask the author. With microservices, the "user" may be you three months from now, or the frontend team. This post adds OpenAPI documentation to the composite service, plus Swagger UI to read and try the API in the browser.
By the end of this post you will have:
-
An OpenAPI 3.1 specification generated from the code, in JSON and YAML.
-
Swagger UI at
http://localhost:8080/openapi/swagger-ui.html. -
The documentation text in a configuration file, with only reference keys left in the Java code.
What springdoc-openapi does
springdoc-openapi inspects your Spring controllers at runtime, combines them with the annotations you add, and generates an OpenAPI specification. It supports WebFlux and ships with a bundled Swagger UI. You never write the specification YAML by hand, so the documentation cannot drift from the code.
I only document the composite service, because it is the only API exposed to the outside. The three core services are internal details, as in the book.
Adding the dependency
The api module already has springdoc-openapi-starter-common from part 1. That artifact only contains the annotations, enough to document the interfaces without pulling Swagger UI into every service.
Only the composite needs the full WebFlux version with the UI:
dependencies {
implementation project(':util')
implementation 'org.springframework.boot:spring-boot-starter-actuator'
implementation 'org.springframework.boot:spring-boot-starter-webflux'
implementation "org.springdoc:springdoc-openapi-starter-webflux-ui:${springdocVersion}"
// ...
}springdocVersion is declared as 2.8.17 in the root build.gradle; the 2.8 line targets Spring Boot 3.5.
General API information
Add an OpenAPI bean to the composite’s main class. Its content comes from configuration through @Value:
@SpringBootApplication
@ComponentScan("com.ecommerce")
public class ProductCompositeServiceApplication {
@Value("${api.common.version}") String apiVersion;
@Value("${api.common.title}") String apiTitle;
@Value("${api.common.description}") String apiDescription;
@Value("${api.common.license}") String apiLicense;
@Value("${api.common.licenseUrl}") String apiLicenseUrl;
@Value("${api.common.externalDocDesc}") String apiExternalDocDesc;
@Value("${api.common.externalDocUrl}") String apiExternalDocUrl;
@Value("${api.common.contact.name}") String apiContactName;
@Value("${api.common.contact.url}") String apiContactUrl;
/** General API information, shown at the top of the Swagger UI page. */
@Bean
public OpenAPI getOpenApiDocumentation() {
return new OpenAPI()
.info(new Info().title(apiTitle)
.description(apiDescription)
.version(apiVersion)
.contact(new Contact().name(apiContactName).url(apiContactUrl))
.license(new License().name(apiLicense).url(apiLicenseUrl)))
.externalDocs(new ExternalDocumentation()
.description(apiExternalDocDesc)
.url(apiExternalDocUrl));
}
public static void main(String[] args) {
SpringApplication.run(ProductCompositeServiceApplication.class, args);
}
}The OpenAPI, Info, Contact, License and ExternalDocumentation classes live in the io.swagger.v3.oas.models package.
Per-endpoint documentation, right on the interface
This is where the design from part 1 pays off. The ProductCompositeService interface in the api module was already the contract; now it carries the documentation too:
package com.ecommerce.api.composite.product;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.responses.ApiResponse;
import io.swagger.v3.oas.annotations.responses.ApiResponses;
import io.swagger.v3.oas.annotations.tags.Tag;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import reactor.core.publisher.Mono;
@Tag(name = "ProductComposite", description = "REST API cho trang chi tiết sản phẩm (catalog + review + gợi ý).")
public interface ProductCompositeService {
@Operation(
summary = "${api.product-composite.get-composite-product.description}",
description = "${api.product-composite.get-composite-product.notes}")
@ApiResponses(value = {
@ApiResponse(responseCode = "200", description = "${api.responseCodes.ok.description}"),
@ApiResponse(responseCode = "400", description = "${api.responseCodes.badRequest.description}"),
@ApiResponse(responseCode = "404", description = "${api.responseCodes.notFound.description}"),
@ApiResponse(responseCode = "422", description = "${api.responseCodes.unprocessableEntity.description}")
})
@GetMapping(value = "/product-composite/{productId}", produces = "application/json")
Mono<ProductAggregate> getProduct(@PathVariable int productId);
}Notice the ${…} values. springdoc resolves them from configuration, just like @Value. The reason to move them out: API descriptions tend to be long, with line breaks and markdown, and that is hard to read and edit inside Java annotations. In YAML it stays tidy, and people who do not write Java can edit it too.
Configuration
Add this to the composite’s application.yml, in the default section (above the --- of the docker profile):
springdoc:
swagger-ui.path: /openapi/swagger-ui.html
api-docs.path: /openapi/v3/api-docs
packagesToScan: com.ecommerce.composite.product
pathsToMatch: /**
api:
common:
version: 1.0.0
title: E-commerce Platform API
description: API của trang chi tiết sản phẩm, dựng theo sách Microservices with Spring Boot 3 and Spring Cloud.
license: Apache 2.0
licenseUrl: https://www.apache.org/licenses/LICENSE-2.0
externalDocDesc: Series bài viết trên blog
externalDocUrl: https://hoangluongtran.dev/
contact:
name: Hoàng Lương Trần
url: https://hoangluongtran.dev/
responseCodes:
ok.description: OK
badRequest.description: Request sai định dạng, xem message để biết chi tiết
notFound.description: Không tìm thấy, xem message để biết chi tiết
unprocessableEntity.description: Dữ liệu đầu vào không hợp lệ, xem message để biết chi tiết
product-composite:
get-composite-product:
description: Lấy thông tin tổng hợp của một sản phẩm theo productId
notes: |
# Mô tả
Trả về thông tin sản phẩm cùng danh sách gợi ý và đánh giá.
# Dữ liệu giả lập (cho tới bài 6)
1. productId 13 trả về 404 Not Found
1. productId 113 không có gợi ý nào
1. productId 213 không có đánh giá nào
1. productId âm trả về 422 Unprocessable Entity
1. productId không phải số trả về 400 Bad Request|
Note
|
The descriptions in my project are in Vietnamese, because this series started out in Vietnamese. Write them in whatever language your API consumers read; only the keys matter to the code. |
The two paths, swagger-ui.path and api-docs.path, share the /openapi prefix. Once we add a Gateway later in the series, a single /openapi/** route exposes all of the documentation. packagesToScan restricts springdoc to the composite’s controllers, so no other endpoints leak in.
The result
./gradlew build
docker compose build

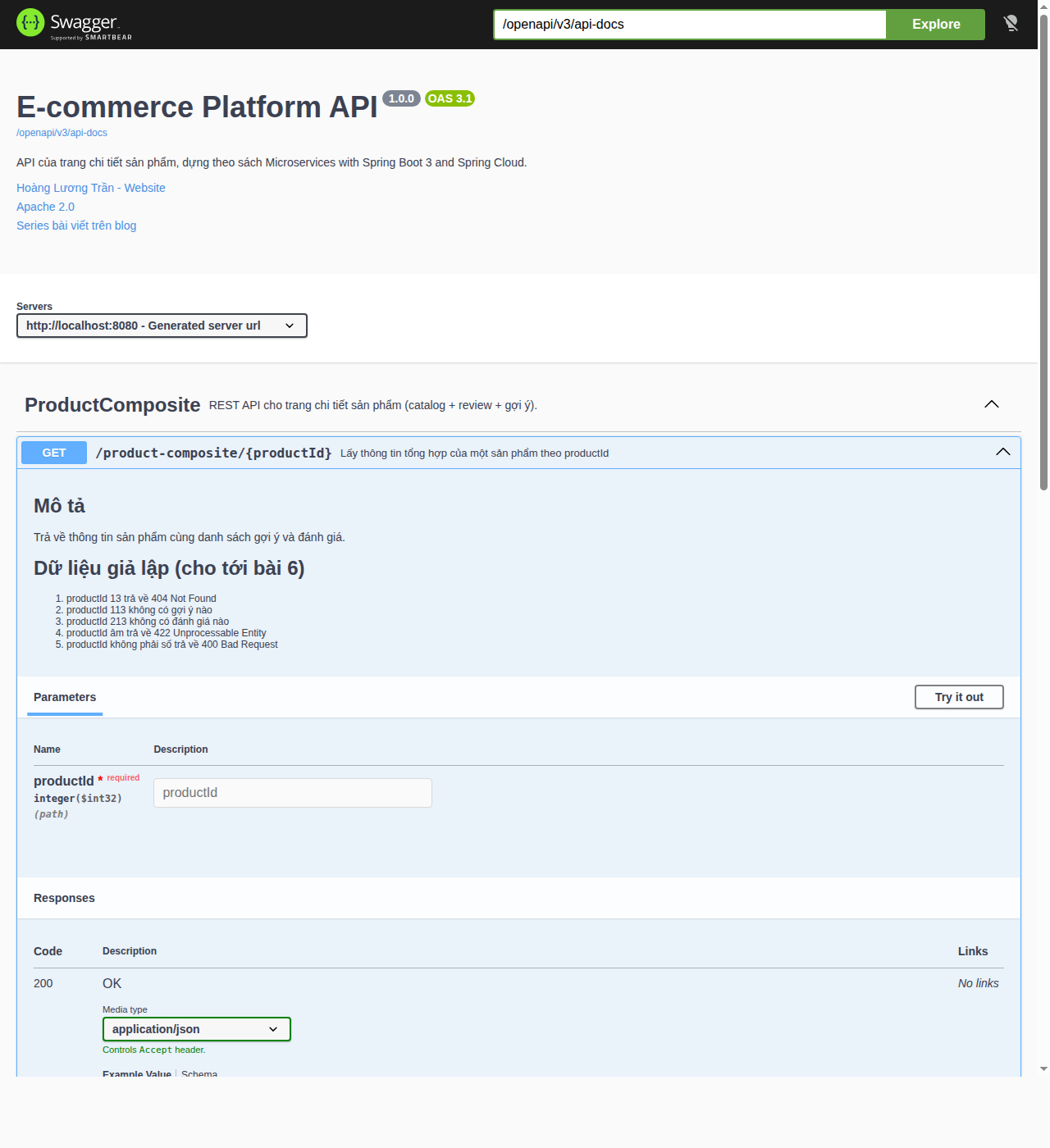

docker compose up -dOpen http://localhost:8080/openapi/swagger-ui.html in a browser. It redirects (302) to /openapi/swagger-ui/index.html:
The description and simulated data sections are the markdown from notes. Click Try it out, enter 1 as productId and click Execute: Swagger UI sends a real request to the composite and shows the response. Try 13 and -1 to see the error codes.
The raw specification is also available for other tools (client generators, importing into Postman):
$ curl -s localhost:8080/openapi/v3/api-docs.yaml | head -20
openapi: 3.1.0
info:
title: E-commerce Platform API
description: "API của trang chi tiết sản phẩm, dựng theo sách Microservices with\
\ Spring Boot 3 and Spring Cloud."
contact:
name: Hoàng Lương Trần
url: https://hoangluongtran.dev/
license:
name: Apache 2.0
url: https://www.apache.org/licenses/LICENSE-2.0
version: 1.0.0
externalDocs:
description: Series bài viết trên blog
url: https://hoangluongtran.dev/
servers:
- url: http://localhost:8080
description: Generated server url
tags:
- name: ProductComposite
description: REST API cho trang chi tiết sản phẩm (catalog + review + gợi ý).|
Note
|
Different from the book: the book uses springdoc 2.0.2, which generates OpenAPI 3.0. Since springdoc 2.8 (paired with Spring Boot 3.4 and later), the default is OpenAPI 3.1, which is why Swagger UI shows an |
Adding it to the end-to-end test
Documentation is part of the API too, so I added a few checks at the end of test-em-all.bash:
# Swagger UI and the OpenAPI documentation
assertCurl 302 "curl -s http://$HOST:$PORT/openapi/swagger-ui.html"
assertCurl 200 "curl -sL http://$HOST:$PORT/openapi/swagger-ui.html"
assertCurl 200 "curl -s http://$HOST:$PORT/openapi/swagger-ui/index.html"
assertCurl 200 "curl -s http://$HOST:$PORT/openapi/v3/api-docs"
assertEqual "1.0.0" "$(echo $RESPONSE | jq -r .info.version)"
assertEqual "http://$HOST:$PORT" "$(echo $RESPONSE | jq -r .servers[].url)"
assertCurl 200 "curl -s http://$HOST:$PORT/openapi/v3/api-docs.yaml"$ ./test-em-all.bash start stop
...
Test OK (HTTP Code: 302)
Test OK (HTTP Code: 200)
Test OK (HTTP Code: 200)
Test OK (HTTP Code: 200)
Test OK (actual value: 1.0.0)
Test OK (actual value: http://localhost:8080)
Test OK (HTTP Code: 200)
We are done, stopping the test environment...
End, all tests OK: Fri Oct 2 06:01:51 UTC 2026Commit:
git add .
git commit -m "Post 5: OpenAPI and Swagger UI"
git tag blog-05Looking back at the foundations
After five posts, we have:
-
A Gradle multi-project build with shared configuration and two shared modules,
apiandutil. -
Four WebFlux microservices with consistent error handling and automated tests.
-
A composite that calls three services in parallel and survives a secondary service going down.
-
The whole system running with one
docker compose up, tested withtest-em-all.bash. -
API documentation generated from code, readable and testable in Swagger UI.
The biggest weakness now is that all data is simulated: every product is called name-<id> and costs 199,000. Part 2 of the series starts by replacing it with real data: MongoDB for the catalog and recommendations, MySQL for reviews, one database per service, plus create and delete APIs through the composite.
